AdEM-PTZ Advanced Electronic Module (Pressure, Temperature and Supercompressibility Compensation)

Name: AdEM-PTZ Advanced Electronic Module (Pressure, Temperature and Supercompressibility Compensation)
Brand: Romet

The AdEM® -PTZ is an electronic counter module with the capability for live compensation for Pressure, Temperature and Supercompressibility (Z).

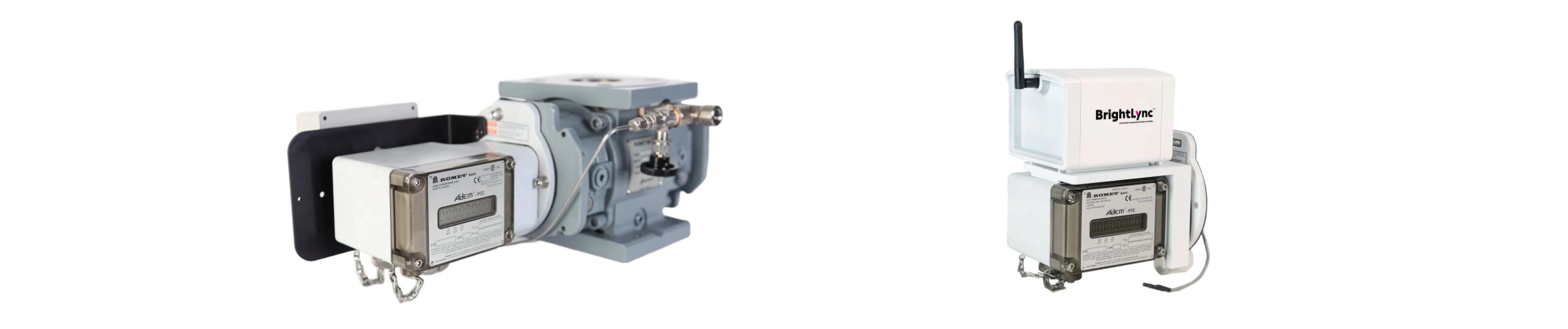

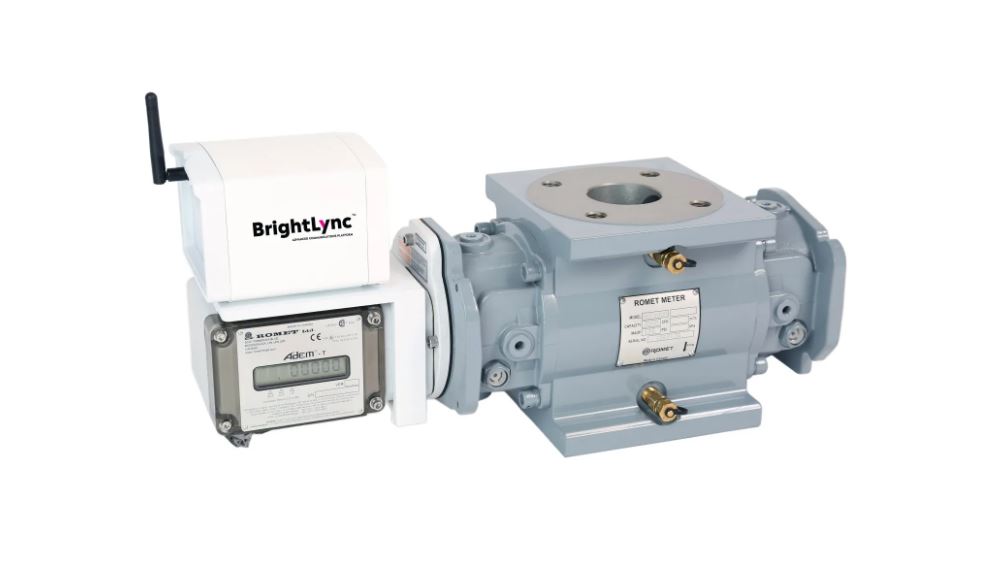

The AdEM-PTZ is a direct mount module for seamless integration with Romet and other popular rotary meters. Some features of the AdEM-PTZ include a full audit trail, four available output pulses, serial communication and a 15 year nominal battery life. This state-of-the-art corrector is also available in a remote mount configuration (AdEM-PTZ-r).

Romet has developed a single adapter plate that will allow our AdEM-PTZ to be installed on Romet RM 600-56000 rotary meters and RMT 600-23000 rotary meters.

We also offer a single adapter plate for Dresser B3 meters ranging from 8C to 56000 and LMMA meters ranging from 1500-16000. The AdEM-PTZ comes standard with Romet’s patented AdEM Click technology allowing for seamless installation between Romet and Dresser rotary meters.

With the AdEM Click you can carry one electronic corrector to fit all sizes and brands of rotary meters in your system.

Simple
Reduced Inventory
Reduced Truck Rolls

Technical Specifications

15 year nominal battery life
Battery life indicated in month or percentages
End of battery life warning
Long lasting lithium battery
Non-volatile EEPROM memory with full audit trail
Up to 256 days of hourly readings
1024 daily logs
102 alarm logs stamped with time and date
166 event logs
Live or fixed temperature and pressure compensation
Fixed pressure factor (customizable)
Total accuracy (nominal): +/- 0.3% of reading
Expands meter rangeability to 200:1
Standard ambient temperature: -40F to +158F (-40C to +70C)
Four output pulses available:
Two isolated volume pulse output channels (corrected and uncorrected)
One isolated pulse output for alarm or volume (corrected or uncorrected)
Additional isolated corrected pulse output channel for AMR/AMI devices
Customizable pulse width and pulse spacing
Serial communication port- RS232 or RS485
Analog and cellular modem compatible
Optional portable keyboard
Highly sensitive RTD sensor
Standard sensor ranges 0-200 PSIG and 10-190 PSIA. Other pressure ranges available on request.
Nominal 12 year calibration
1 point temperature calibration
3 point pressure calibration

Fixed/configurable parameters with multiple levels of security
Standard with patented AdEM Click technology (available only on direct mount version)
Compatible with Itron, Sensus, Aclara, and other AMI/AMR devices
Convenient one touch push button proving mode (available only on direct mount version)
Quick and efficient proving with a Model 5 prover (available only on direct mount version)
Rugged single scroll button with up to 15 display parameters
Large, easy to read LCD 8 digits, 14 segment semi alpha-numeric
UV resistant engineered polycarbonate enclosure
Weather resistant
Adapter plates for Dresser LMMA & B3 meters(available only on direct mount version)

AdEM-PTZ Approvals/Certifications

Intrinsically safe class I division 1 & 2 group D
CSA Approval 2277666
ATEX Approval FTZU 08 ATEX Q 004 & FTZU 05 ATEX 0274X
IECEx Certification of Conformity- 60079 Intrinsic Safety
Measurement Canada Approval AG-0606
MID Approval SK 17-QD-SMU-017 & SK13-MI002-SMU005
New York State approved
Third-party qualification testing- Gas Technology Institute
CE declaration of conformity
