The V1000-4X is a version of the standard V1000 in an integral enclosure that meets NEMA type 4X/12 indoor use requirements, UL type 4X/12 standards, and the IP66 rating of IEC 529.
This enclosure provides the protection required in tough washdown or dust-tight environments, common in Food and Beverage Processing, Packaging, Metal Machining, Woodworking, Pumping, Refrigeration, and Printing. The enclosure is coated to protect against the harmful effects of sanitizing chemicals commonly used in food industries.

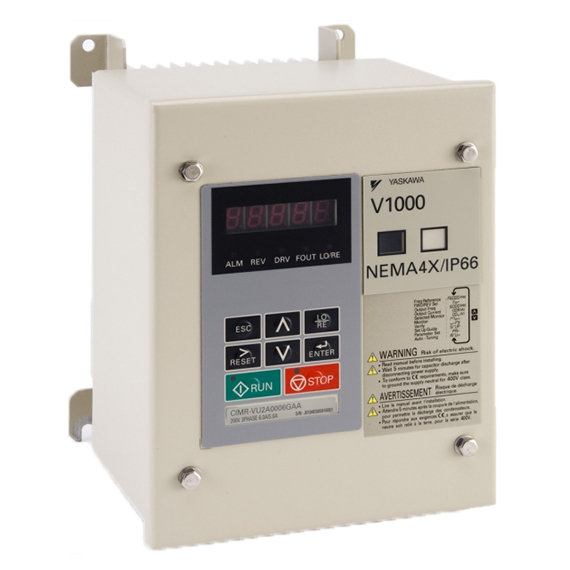

Yaskawa V1000 4X Drive

Specs

Overload Capacity
150% Overload for 60 sec. (Heavy Duty)
Output Frequency
0~400 Hz (higher frequencies available with custom software)
Braking Torque
20 - 40% increase with intelligent high-slip braking function
Global Certification
CE, UL, cUL, RoHS, TUV

Features

  • Horsepower Range: 1/4 Hp-25 Hp , 240v/480v
  • NEMA Type 4X/IP66 enclosure
  • Corrosion-resistant
  • Current vector control, open loop/li>
  • RoHS compliance
  • On-line tuning
  • Induction motor (IM) or permanent magnet synchronous motor (PM) operation
  • Function Block Diagram (FBD) programming via DriveWorksEZ™
  • Starting torque of 200% at 0.5 Hz
  • Removable terminal block with parameter backup function
  • "One-touch" copy function with verify
  • Super-fast 2 ms scan cycle with dual CPU
  • EN954-1 Safety Cat. 3, Stop Cat. 0
  • Increased vibration resistance, from 20 Hz to 50 Hz (0.65G)
