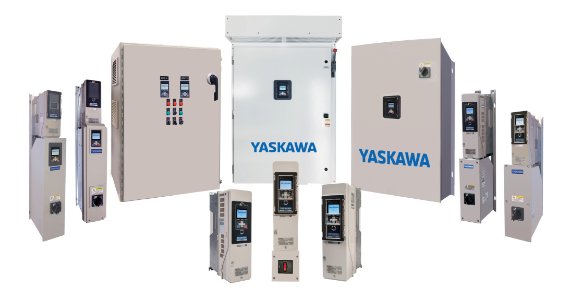

The HV600 variable frequency drive (VFD) are designed for use in HVAC (building automation) applications that require reliable system control. The HV600 is available in several enclosure configurations including IP20/UL Type 1, IP55/UL Type 12, and IP20/Protected Chassis protection classes.

It is also available in an IP55/UL Type 12 Drive with Disconnect Switch, as well as "Narrow" versions.

Every HV600 comes with HVAC application-specific software presets, a Hand-Off-Auto LCD keypad, a high-visibility Status Ring for quick visual indication of drive status, and a real time clock for system accuracy.

Features

Sustainable:
  • 10-year maintenance-free operation
  • Built-in (5% split or 3% positive bus DC link choke) line impedance for harmonic reduction
  • Compliance with global certifications and standards
  • Conformal coating for circuit board protection
Simple Operation:
  • High-visibility status ring
  • Hand-Off-Auto (HOA) keypad with LCD display and tactile buttons
  • Optional Bluetooth Hand-Off-Auto (HOA) Keypad with LCD display and tactile buttons
  • Compatible with all major network communication protocols
HVAC Applications:
  • Fans
  • Cooling Towers
  • Pumps
  • Multiplex Pumping
HVAC-Specific Application Software
  • Damper Control
  • Emergency Override
  • Motor Preheat
  • Motor Protections
  • Hunting Prevention
  • Output Disconnect Detection
  • Power Loss Ride Through
  • Built-in HVAC Fieldbus Communications Protocols:
    • BACnet MSTP
    • APOGEE FLN
    • Metasys N2
    • Modbus RTU
Quick and Easy Set-up
  • ​Simple steps for efficient commissioning
  • Convenient programming without main power
  • Operates induction, permanent magnet, and synchronous reluctance motors
  • DriveWizard® Mobile app for drive management on smart mobile devices

Features and Benefits of the HV600

Play Video
Yaskawa HV600 HVAC Drive

Specs

Horsepower Range (standalone UL Type 1 and UL Type 12)
3-100 HP @ 240v, 3-250 HP @ 480v
Horsepower Range ( UL Type 1 Narrow Configured Packages)
0.5 HP-40Hp @240v, 0.75 Hp - 75 HP @ 480v
Horsepower Range ( UL Type 12 Narrow Configured Packages)
0.5 HP-20Hp @240v, 0.75 Hp - 40 HP @ 480v
Drives for Every Environment
IP20/UL Type 1
IP55/UL Type 12
IP55/UL Type 12 with Switch
IP20/Protected Chassis
Plenum rate
Seismic certified
Flexible Solution
-10°C to +60°C ambient*
Side-by-side mounting*
UL Type 1 End cap kits for IP20/Protected Chassis drives
External heatsink mounting (UL Type 1 and UL Type 12)
Compatible with all major network communication protocols
