Manage your lubrication program and reduce bearing failure.



The Ultraprobe 401 Digital Grease Caddy provides all the data you’ll need to optimize your lubrication program. Whichever lubrication method you may use; time-based/preventive lubrication or condition based lubrication, you’ll find the Ultraprobe 401 system is essential to your program.

The perfect blending of advanced digital technology and data management software provides the ability to review your total lubrication practice, trend successes, note warning signs and have the ability to continually improve your program.

Ultraprobe 401 Grease Caddy Overview

Play Video
UE Ultraprobe 401 Digital Grease Caddy Pro

Specs

Housing

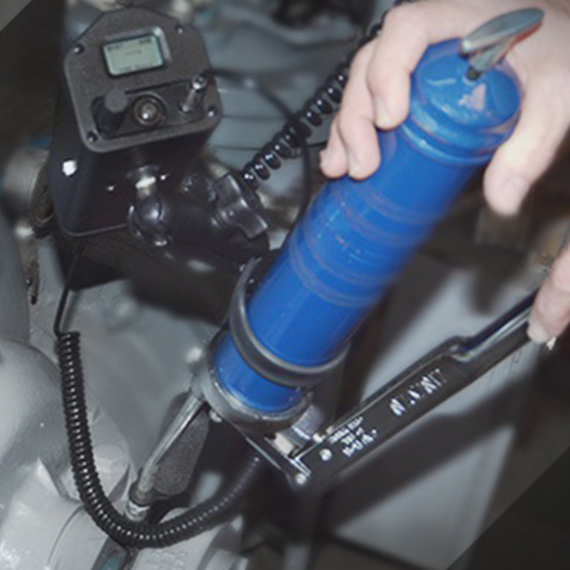

Attaches directly to the grease gun, gives visual and audible indication for proper lubrication
Construction
PC + ABS Plastic
Dimensions
7″ x 3.2″ x 3.0″ (17.8 x 8.1 x 7.6 cm)
Operating Temperature
32°F to 122°F (0°C to 50°C)
Humidity Circuity
Solid State Analog and SMD Digital Circuitry with temperature compensation and true RMS conversion
Transducer
Magnetically mounted piezoelectric transducer
Frequency Response
Peak response: centered around 30 kHz Frequency range 20 kHz – 100 kHz
Indicatord
B, battery status and 16 segment bar graph
Memory
400 Storage locations
Output(s)
Calibrated heterodyned output, decibel (dB)
Response Time
<10 ms
Display
128 x 64 LCD with LED backlight
Power
Lithium Polymer rechargable
Headset
Deluxe noise isolating headset for hard hat use. Over 23 dB of noise attenuation. Meets or exceeds ANSI Specifications and OSHA standards
Attachment
Universal: fits most commercially used cartridge grease guns
Weight
1.25 lbs. (0.57 kg)
Warranty
5-year parts/labor standard

Features

  • Grease Caddy housing with digital display, headphone & battery charger receptacle, sensitivity dial, built in front end light & battery indicator.

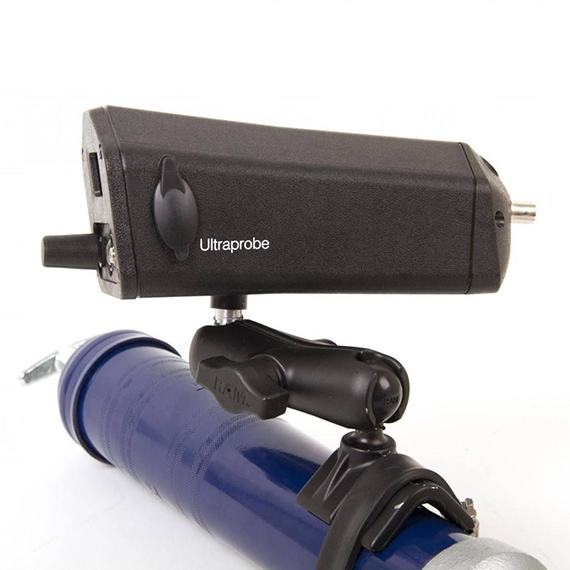

  • Swivel base mounting kit to connect the Ultraprobe 401 to your grease gun
  • Battery charger
  • Deluxe industrial noise reducing headset
  • Belt holster for easy carrying
  • Comprehensive instruction manual
